Description
| Weight | 69 kg |
|---|---|
| Brand | NORDBERG |
| SKU | N3710 |
| Capacity | 1 ton |
| Load capacity in boom position 2 (P2), kg | 750 |
| Lifting capacity in boom position 3 (P3), kg | 500 |
| Lifting capacity in boom position 4 (P4), kg | 250 |
| Wheel spacing (E), mm | 480 |
| Lifting capacity in boom position 1 (P1), kg | 1000 |
| Max. lifting height, in boom position 1 (H1), mm | 1935 |
| Max. lifting height, in boom position 4 (H2), mm | 1950 |
| Boom length in position 1 (L1), mm | 1055 |
| Boom length in position 2 (L2), mm | 1145 |
| Arrow length in position 3 (L3), mm | 1235 |
| Arrow length in position 4 (L4), mm | 1325 |
| Base length (B), mm | 1560 |
| Max. base width (D), mm | 1050 |
| Height of crane (C), mm | 1400 |
| Package size | 1 Box: 1420x460x190mm 69 kg |

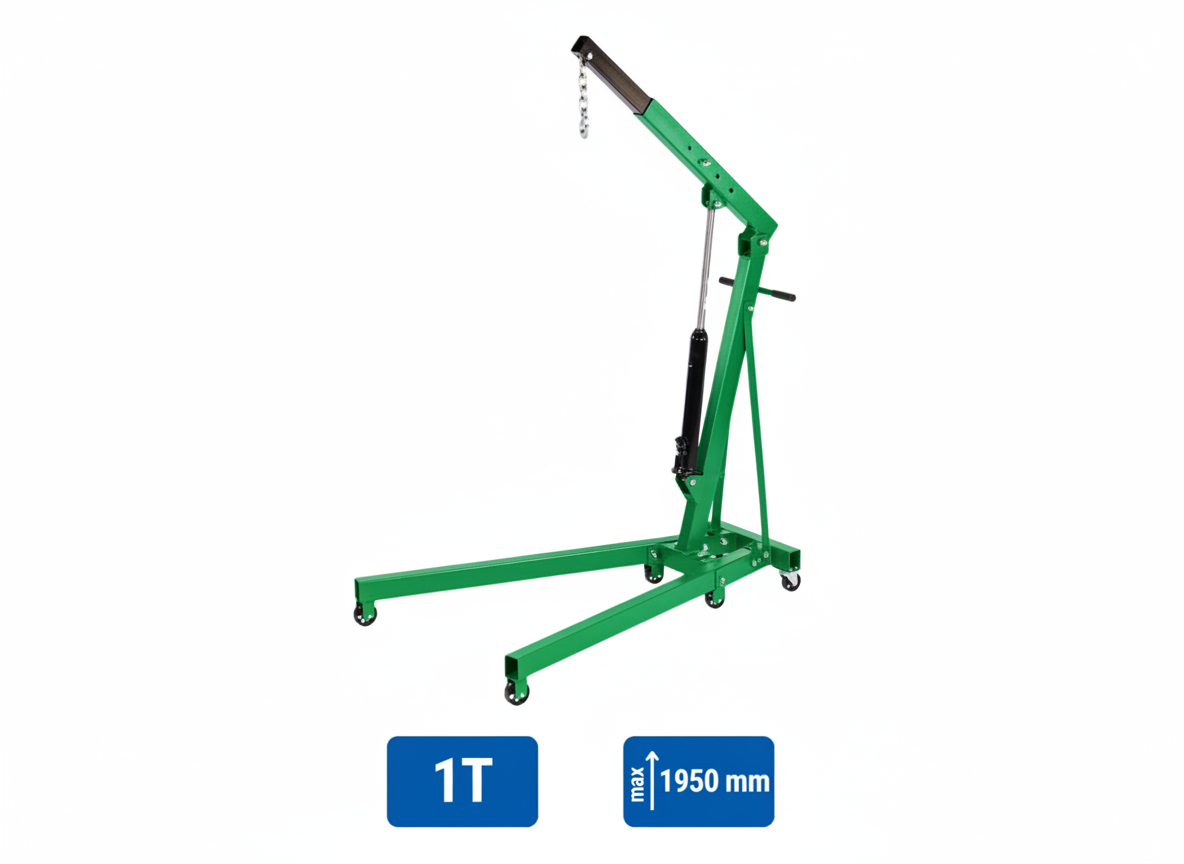

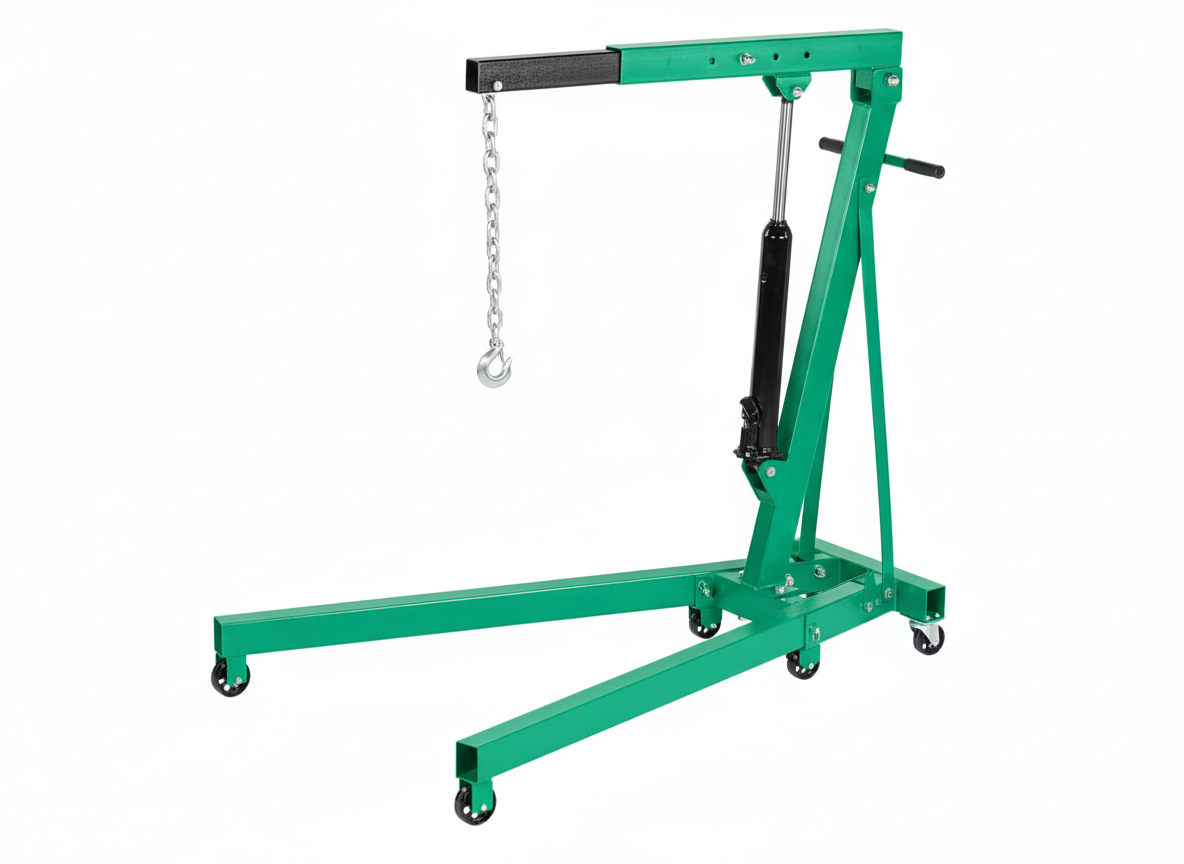

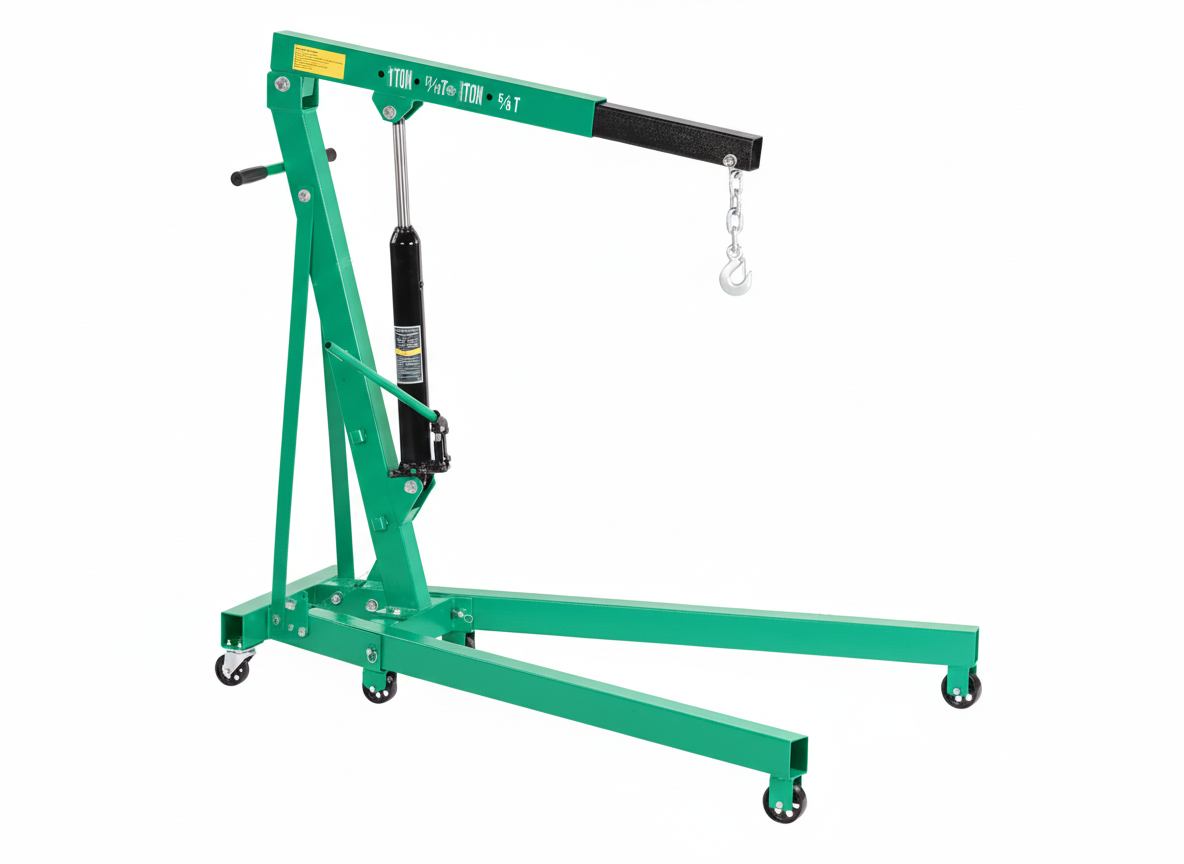

1 ton Engine Crane NORDBERG N3710
The N3710 hydraulic folding crane is designed for lifting and moving automotive components, units and other loads weighing up to 1 ton.
Advantages
- It can be used at service stations, car repair shops and other production enterprises.
- Lifting and lowering of loads is carried out by means of a hydraulic cylinder with manual drive.
- The load capacity of the crane depends on the outreach of the boom and varies from 250 kg to 1 ton.
- The folding design of the outriggers allows for compact storage and easy transport to the working area.
- The crane is equipped with 6 wheels, which give good stability both when working and when folded.
- The device is fully autonomous and does not require any additional attachments.
