Description
| Weight | 139 kg |
|---|---|
| Dimensions | 1619 × 530 × 760 mm |
| Brand | NORDBERG |
| SKU | N3620F |
| Capacity | 20 ton |
| Working Table Width | 480 mm |
| Working Table Depth | 140 mm |
| Hydraulic stroke | 190 mm |
| Pump drive | manual + pedal |
| Adjustable Table Height | 280–1170 mm |
| Oil filling volume | 900 ml |
| Maximum working range | 912 mm |
| Horizontal Displacement | 330 mm |
| Warranty | 1 year Service Warranty |
| Package size | 1 Box: 1700 × 710 × 270 mm 139 kg |

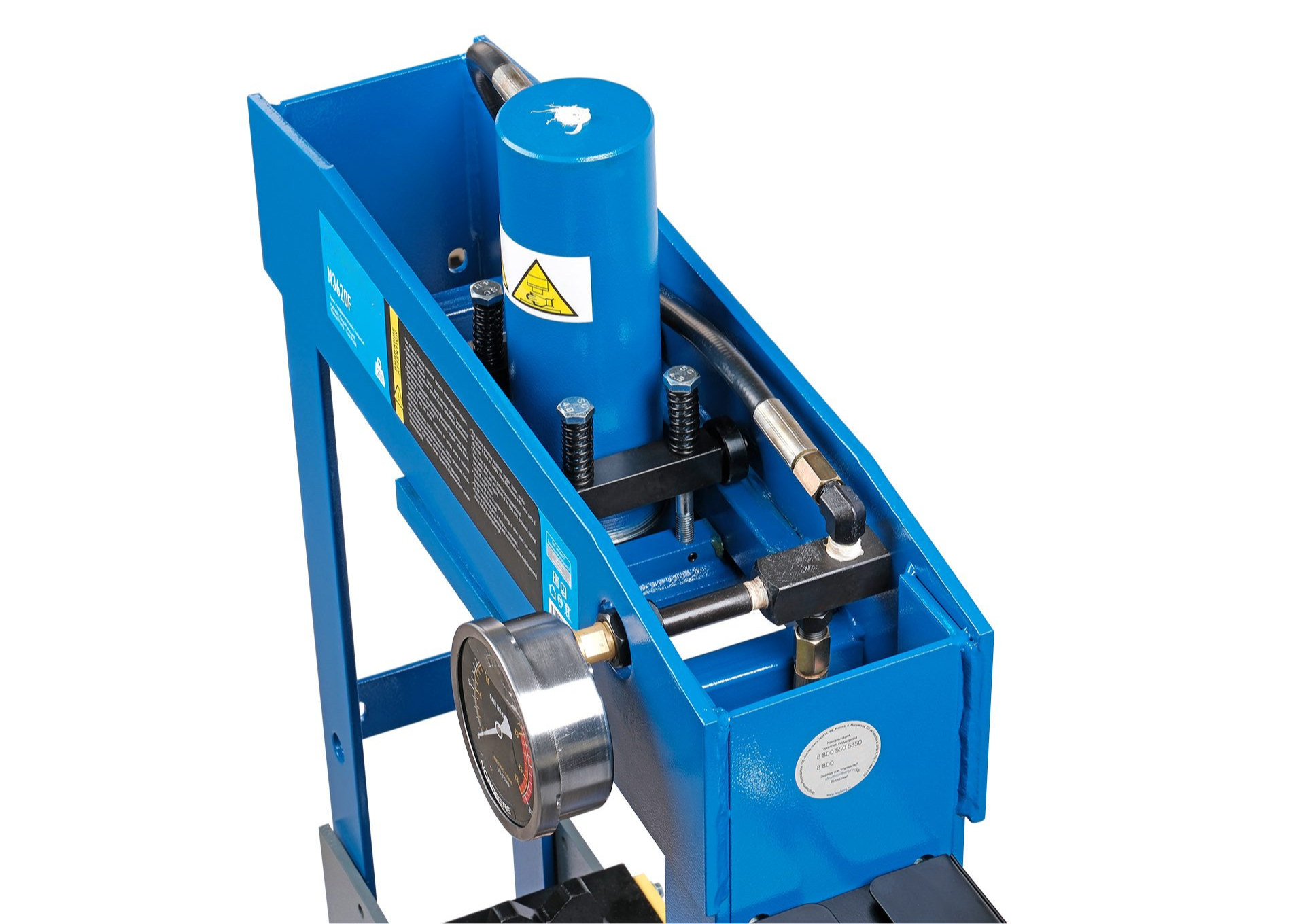

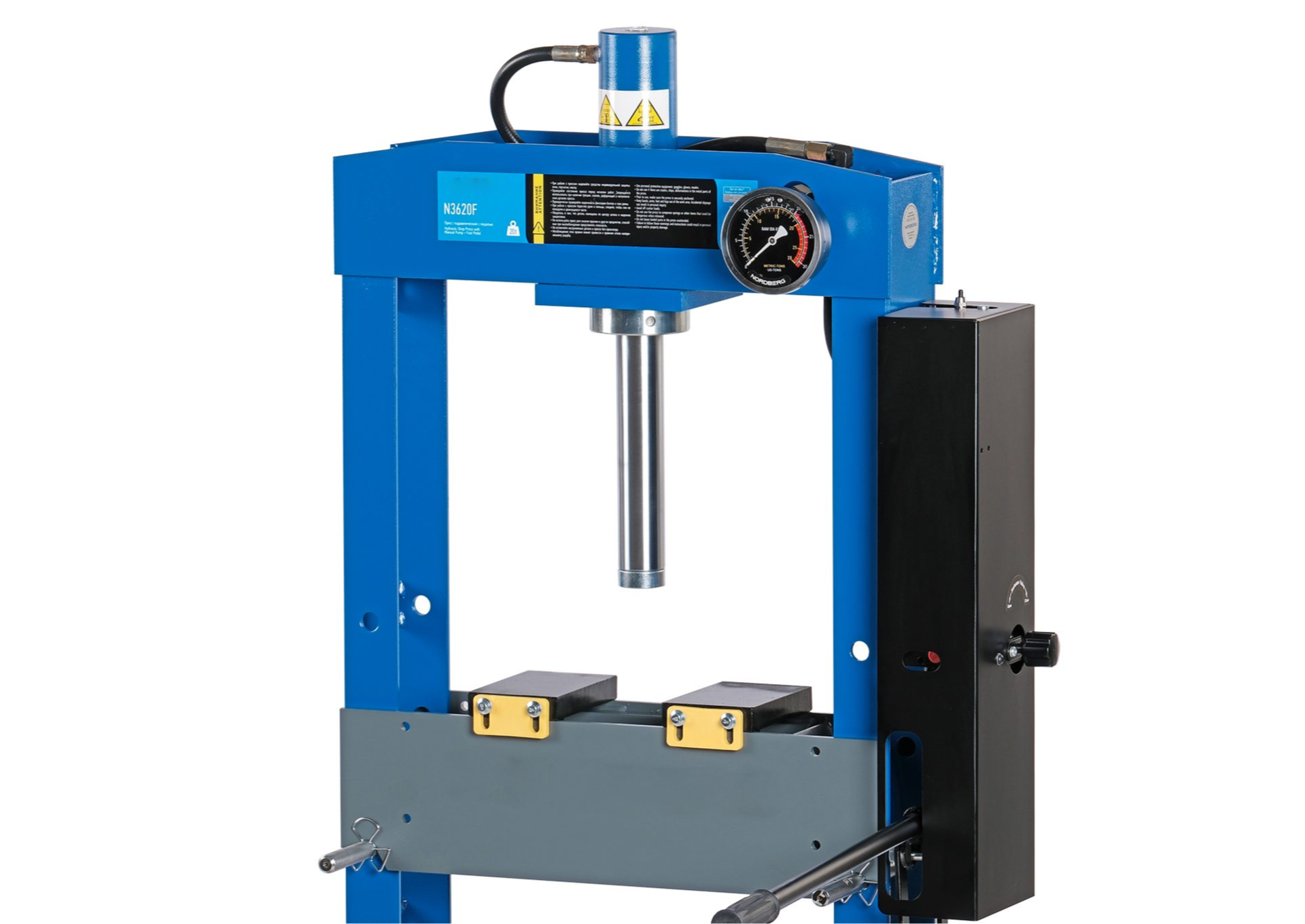

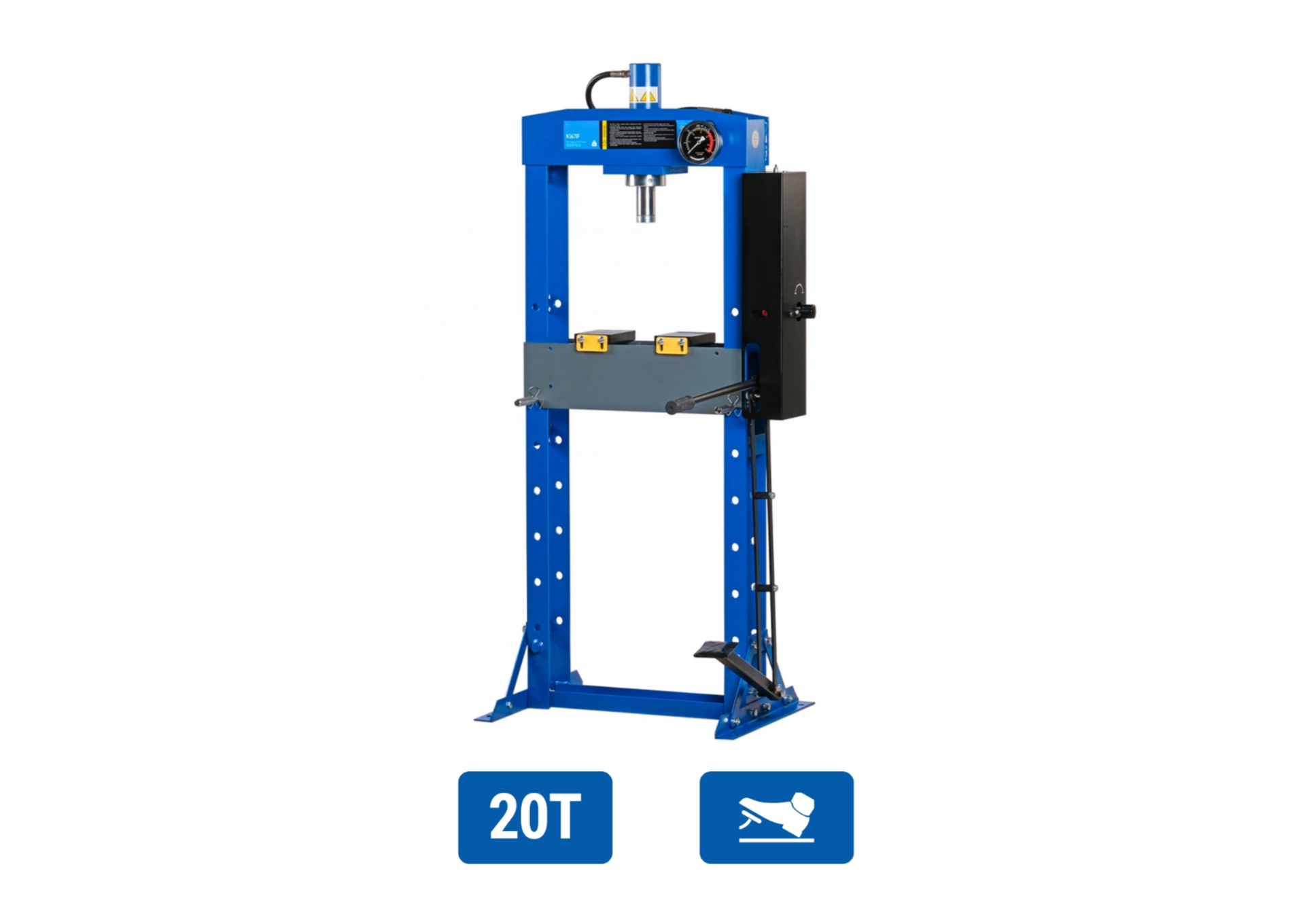

20 TON Hydraulic Shop Press, foot drive NORDBERG N3620F
Hydraulic press with manual and foot drive NORDBERG N3620F – equipment for various repair works in car repair shops and service stations.
Functional
It is used for the following repair and assembly works: pressing bearings and bushings, straightening shafts, axles, profiles, for pressing workpieces.
Advantages
- Maximum force 20 tons
- Robust welded frame provides structural stability
- Possibility of displacement of hydraulic cylinder
- Adjustable work table
- Hydraulic pump with manual drive.
- Foot pedal
Ease of use
- Two trapezoidal plates for a secure hold
- Pressure gauge for monitoring working pressure at eye level.
Hydraulic press NORDBERG N3620F is an indispensable equipment in car repair shops, garages, allowing to perform various repair works efficiently and quickly.
