Description
| Weight | 656.3 kg |
|---|---|
| Brand | NORDBERG |
| SKU | N4120HE-4B |
| Capacity | 4 ton |
| Lock | Electric lock |
| Models | Clear floor |
| Height Overall | 3600 mm |
| Width Overall | 3420 mm |
| Column Inside | 2890 mm |
| Lifting Height | 1910 mm |
| Minimum height | 110 mm |
| Lifting Time | 54 sec |
| Arm Length | 800-1220 mm |
| Arm type | 2-section |
| Motor power | 2.2KW |
| Warranty | 1 year Service Warranty |
| Package size | 2 Boxes: 3650 x 440 x 700mm 635 kg; 795 x 280 x 320mm 21.3 kg |

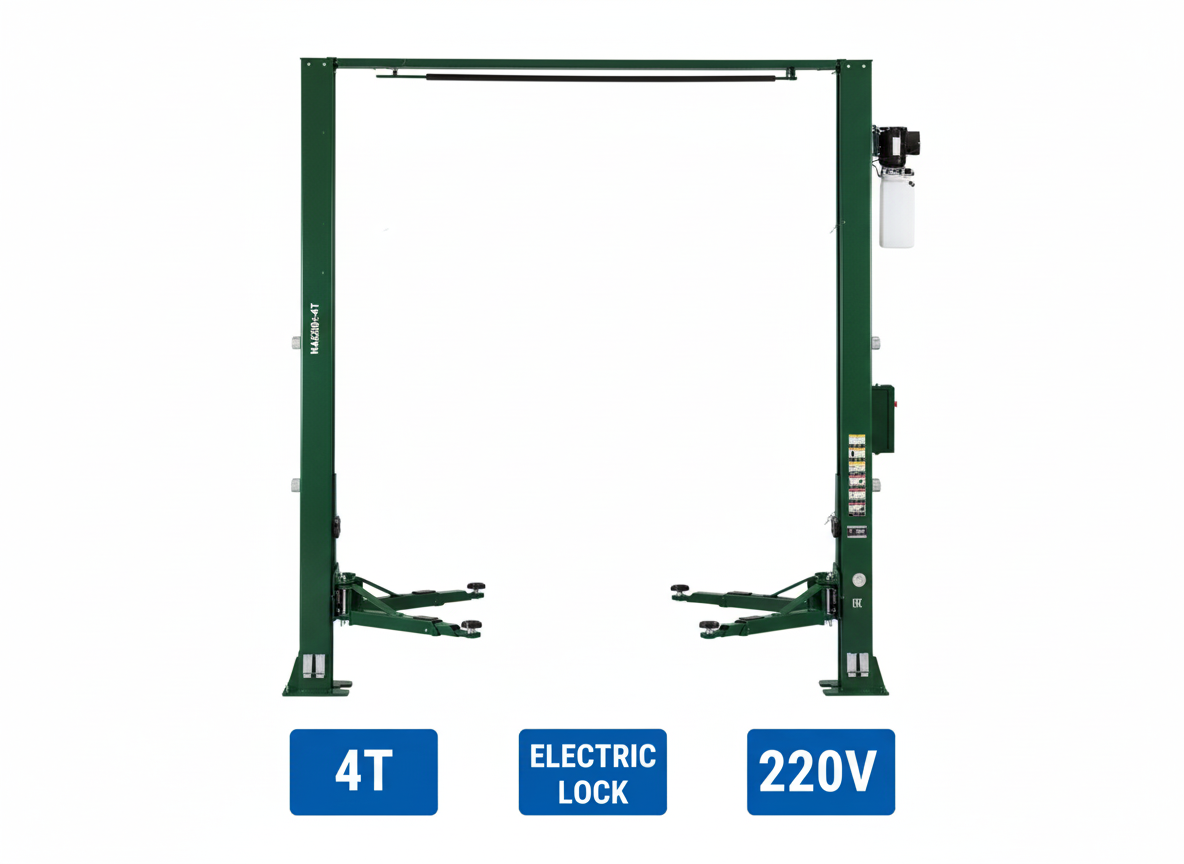

4 TON, 3.6M, ELECTRIC LOCK, 220V, TWO POST LIFT N4120HE-4B
Nordberg N4120HE-4B 220/380V 4 ton electro-hydraulic lift with top cable synchronization, with electric stoppers.
Functional:
Designed to lift the vehicle for maintenance work.
Advantages:
- Symmetrical lifting arms with lower position release
- One-piece column design provides maximum stability
- Quality-controlled hydraulic cylinder components
- Lift limiters to prevent damage to the roof
- Rubber bumpers for doors
- Including M20x200 anchor bolts
- Complete with 100mm high frame spacers and M20x200 anchor bolts.
4 ton two post lift NORDBERG N4120HE-4B – Safe and reliable equipment for wheel alignment, diagnostics and repair of vehicles in service stations and workshops.
