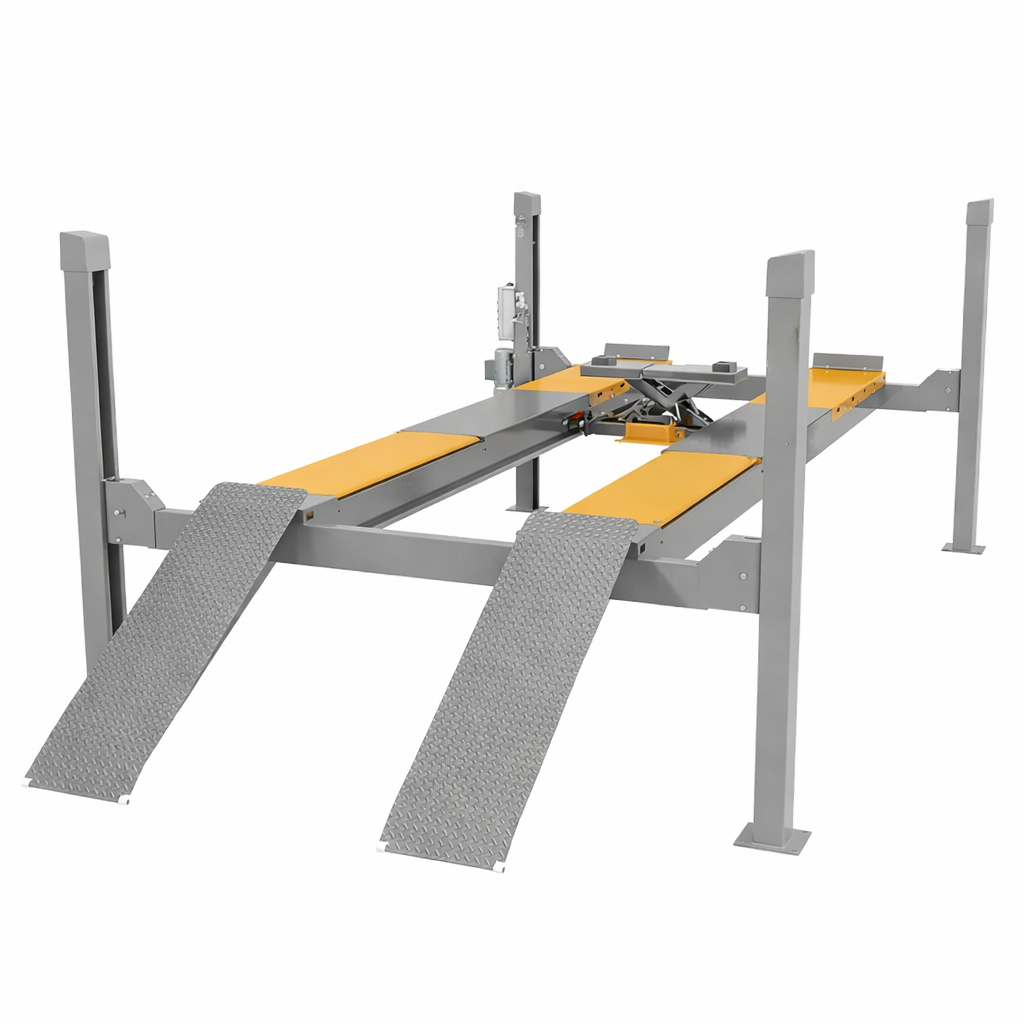

FOUR WHEEL ALIGNMENT FOUR POST LIFT Features 5.5 Ton lifting capacity, passed 120% dynamic and 150% static load test. 3000mm width between columns, 4780mm usable runway length, vice runway can be moved freely. Equip with sliding rails for the rolling jack, optional with several types of bridge rolling jack. Convenient and accurate platform levelling, suitable…

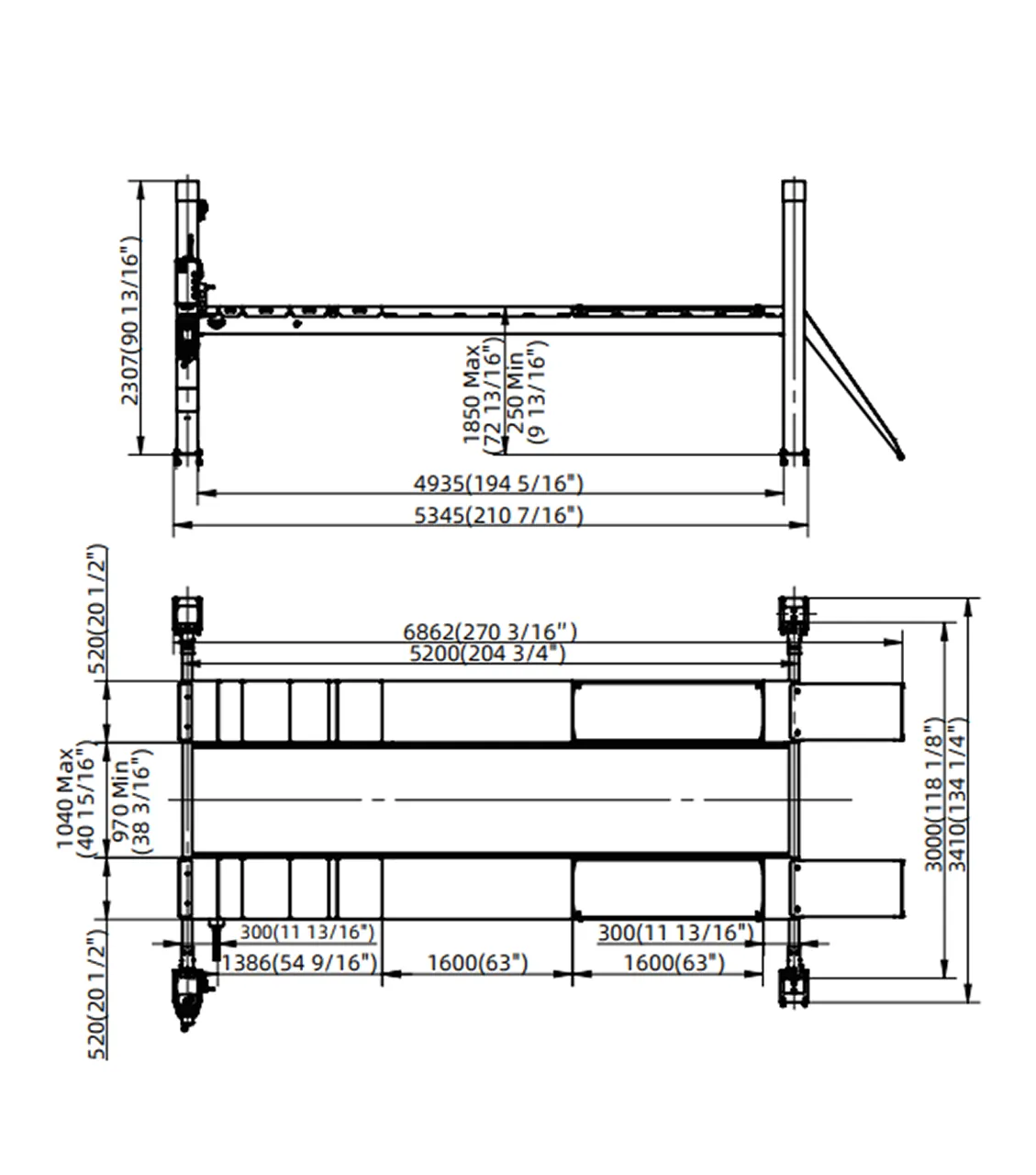

| Model No. | ON-7455 |
| Lifting Capacity | 5500kg(12000lbs) |
| Lifting Time | ?60s |
| Lifting Height | 1850mm (72 13/16?) |
| Overall Height | 2307mm (90 13/16?) |
| Overall Length (Inc Ramps) | 6862mm (270 3/16?) |
| Overall Length (No Ramps) | 5200mm (204 3/4?) |
| Overall Width | 3410mm (134 1/4?) |
| Width Between Columns | 3000mm (118 1/8?) |
| Gross Weight | 1668kg (3,677LBS) |
