Description
| Weight | 170 kg |
|---|---|
| Dimensions | 1995 × 1190 × 254 mm |
| Brand | NORDBERG |
| SKU | N4M4 |
| Capacity | 680 kg |
| Lifting Height | 185-825 mm |
| Ascent/descent time | 45 sec/25 sec |
| Platform dimensions | 1995 × 711 (1190 mm with expansion plates) + 254 + 254 mm |
| Runway Width | 711 mm |
| Runway extender | 2 pcs. |
| Length | 1995 mm |
| Package size | 3 Boxes: 2050 x 320 x 160mm 60 kg; 630 x 270 x 240mm 20 kg; 2050 x 850 x 270mm 190 kg |
| Warranty | 1 year Service Warranty |

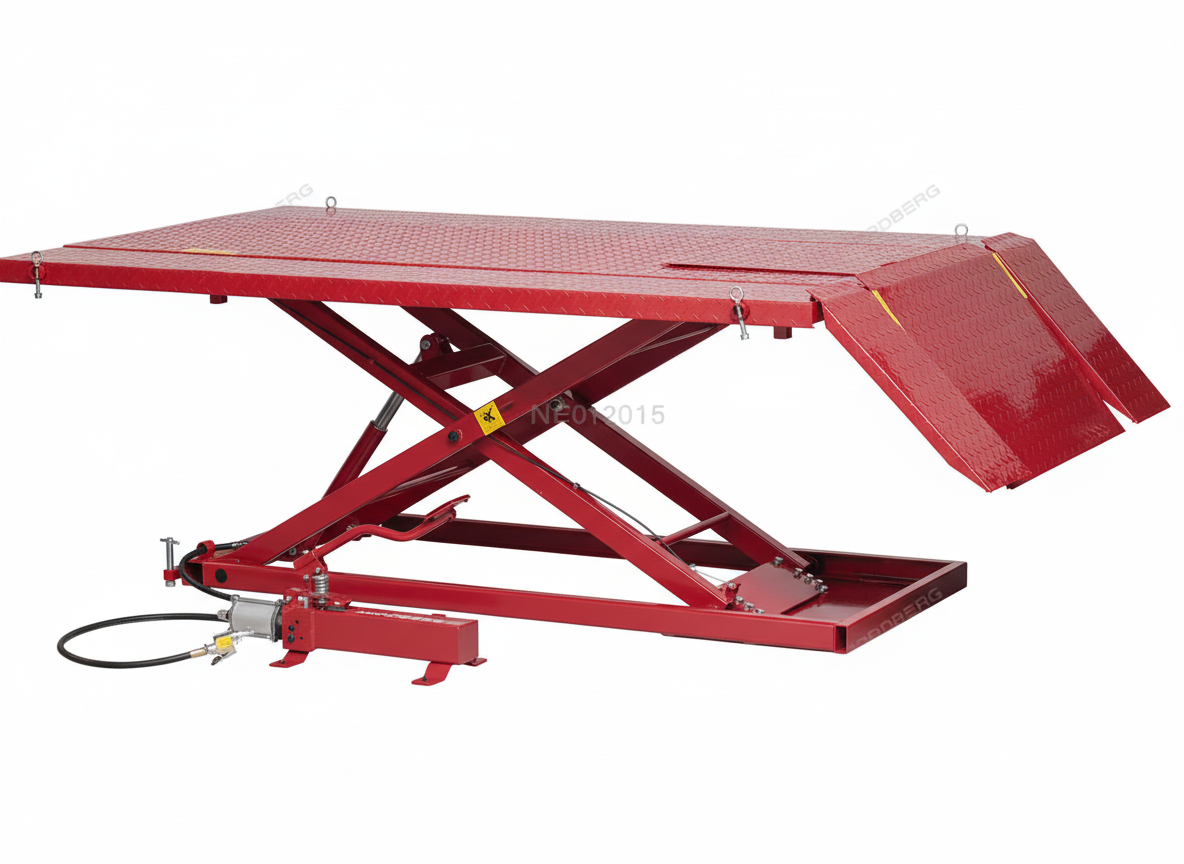

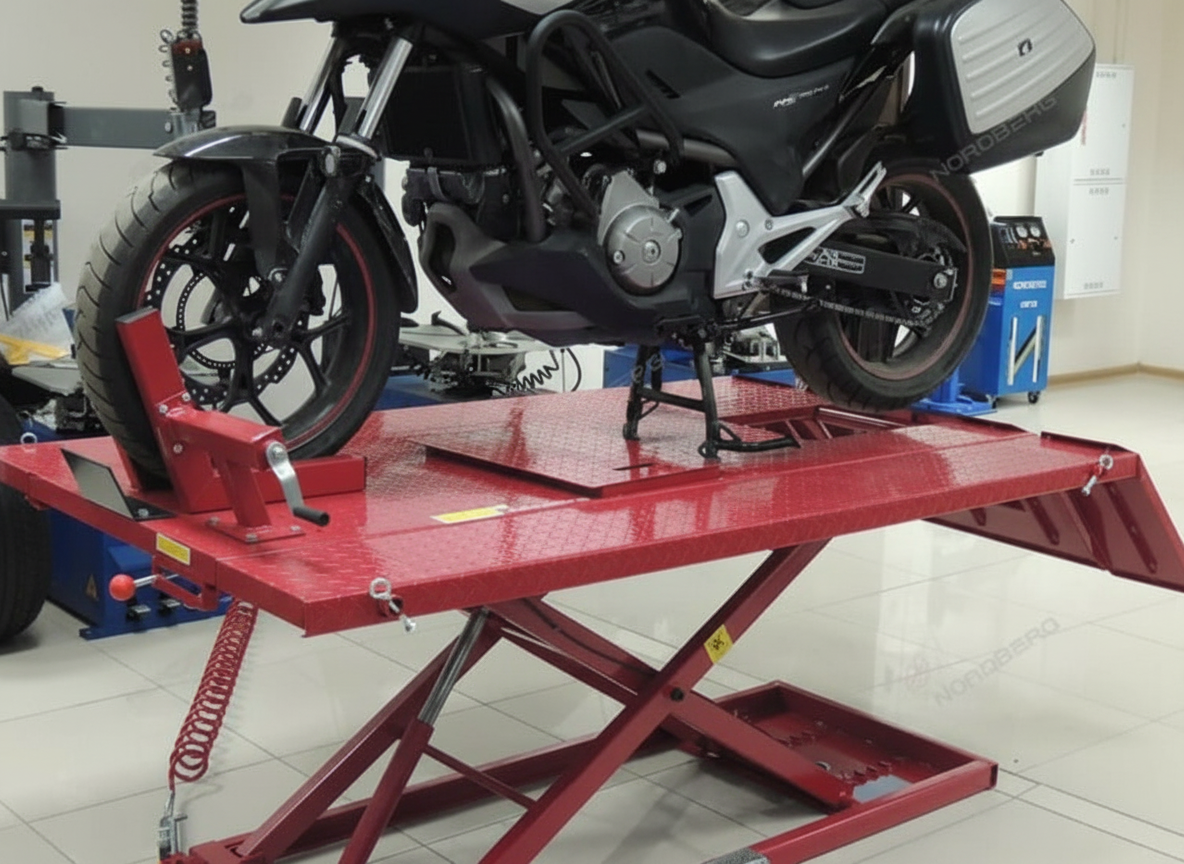

Motorcycle, Quad Bike Lift 680 kg NORDBERG N4M4
The NORDBERG N4M4 ATV Lifting device is a device for vertical movement of motorized vehicles. The unit is used in a private garage. The unit is equipped with a pneumatic drive and foot control system. The model is characterized by stable and continuous operation in dry and closed premises. The device does not require complex maintenance.
Advantages :
- Intended for lifting quads weighing up to 680 kg to a height of up to 825 mm
- Not to be used in wet areas (eg: carwashes)
- Does not require latching to the floor
- Has foot-operated drive
- Adjustable front wheel holder with rubber protective pads
- Inspection hatch for easy rear wheel removal
- Anti-slip, ridge surface
- Expansion plates included

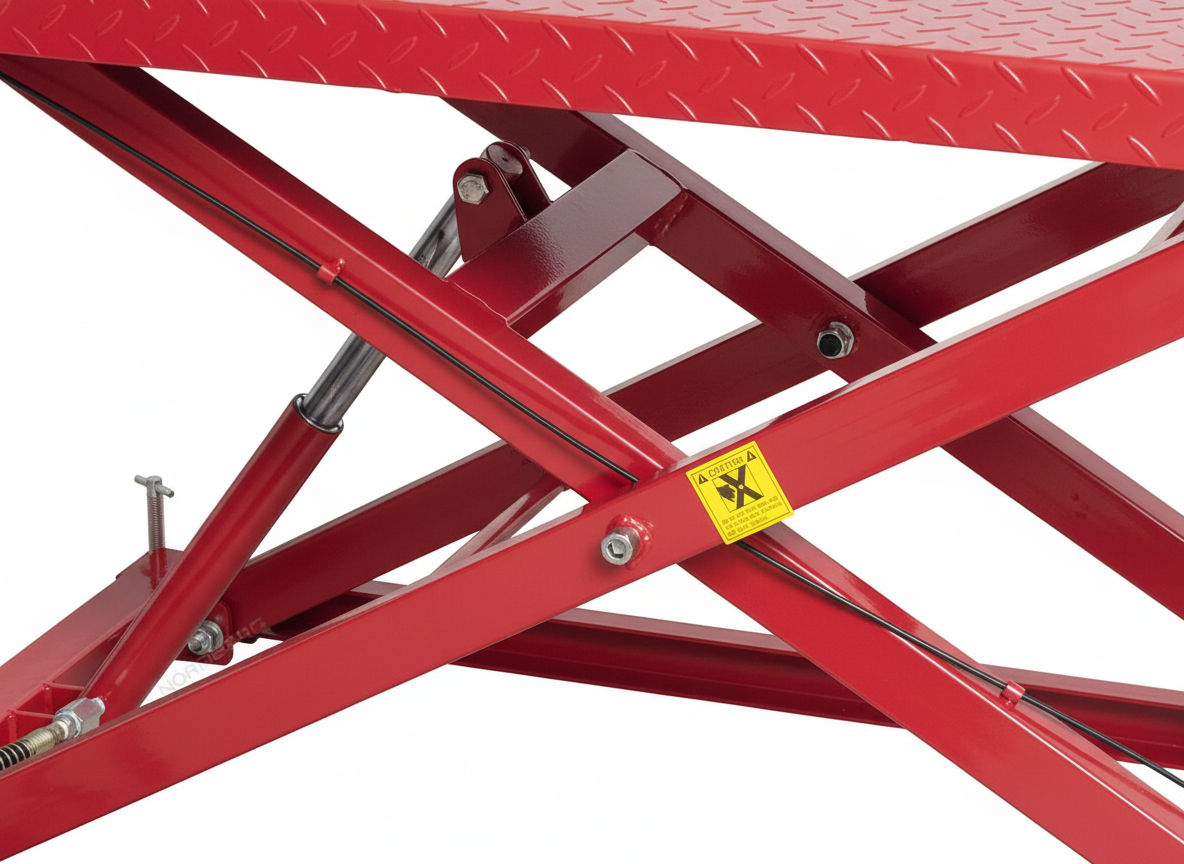

- Air-hydraulic pump help to speed up lifting
