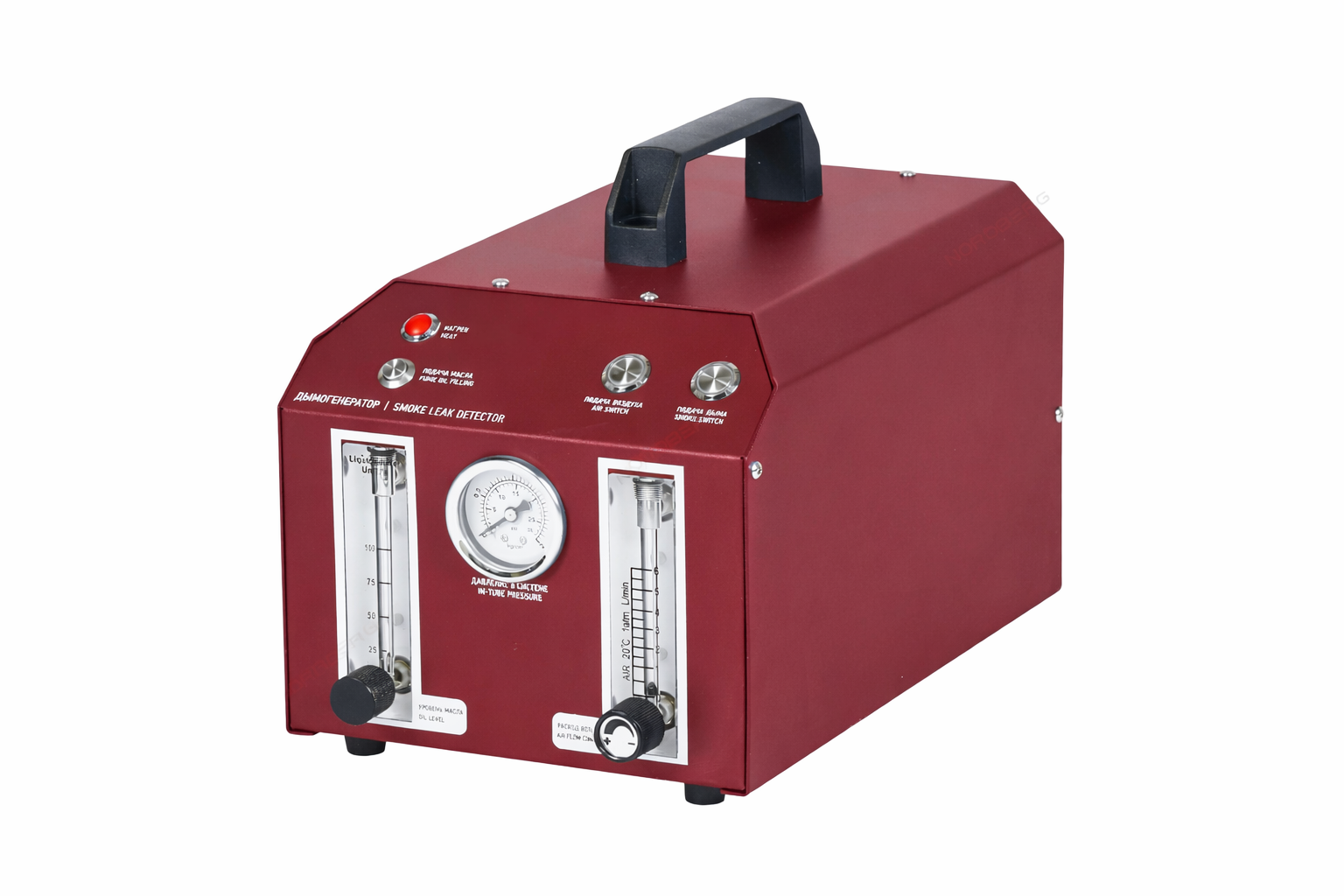

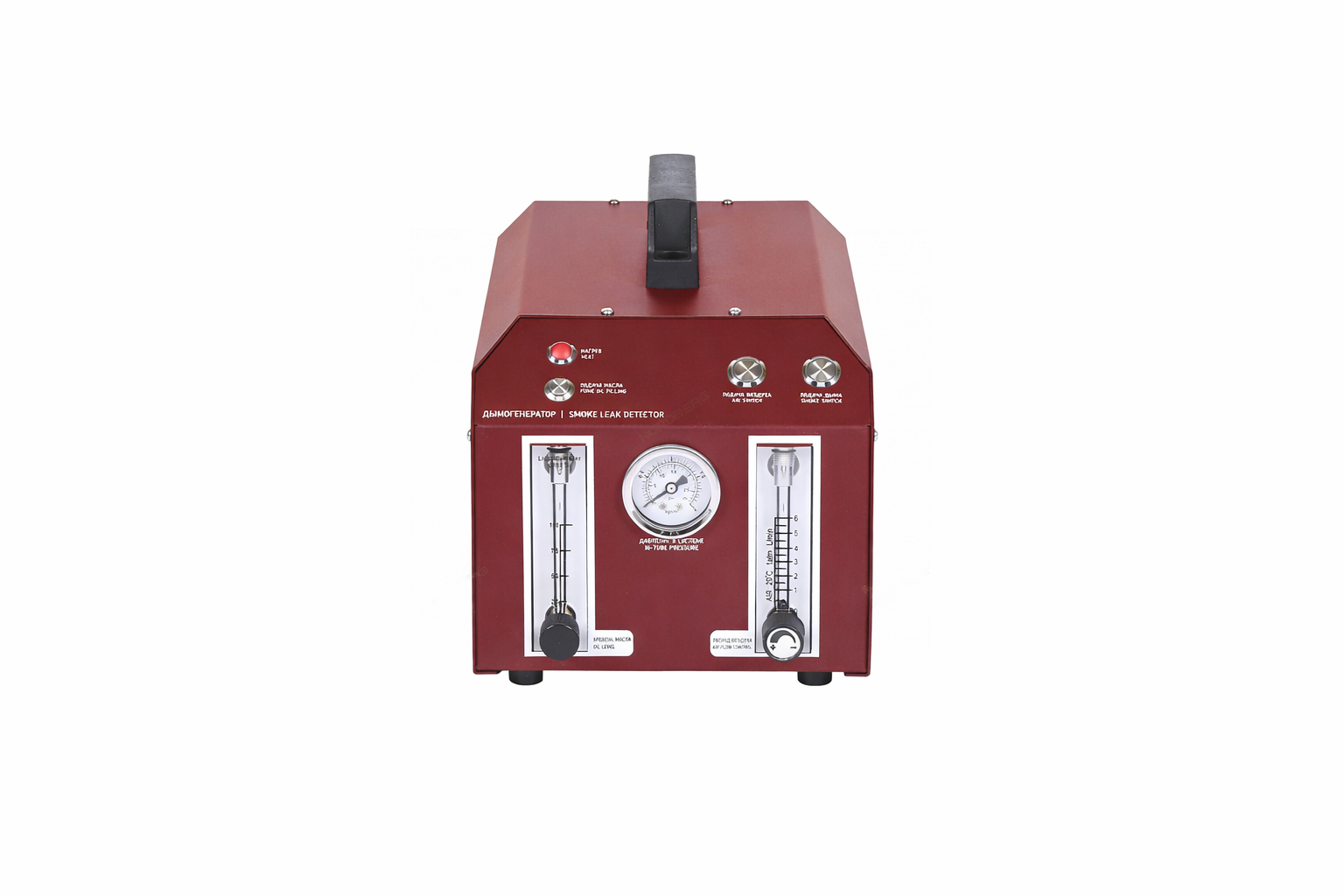

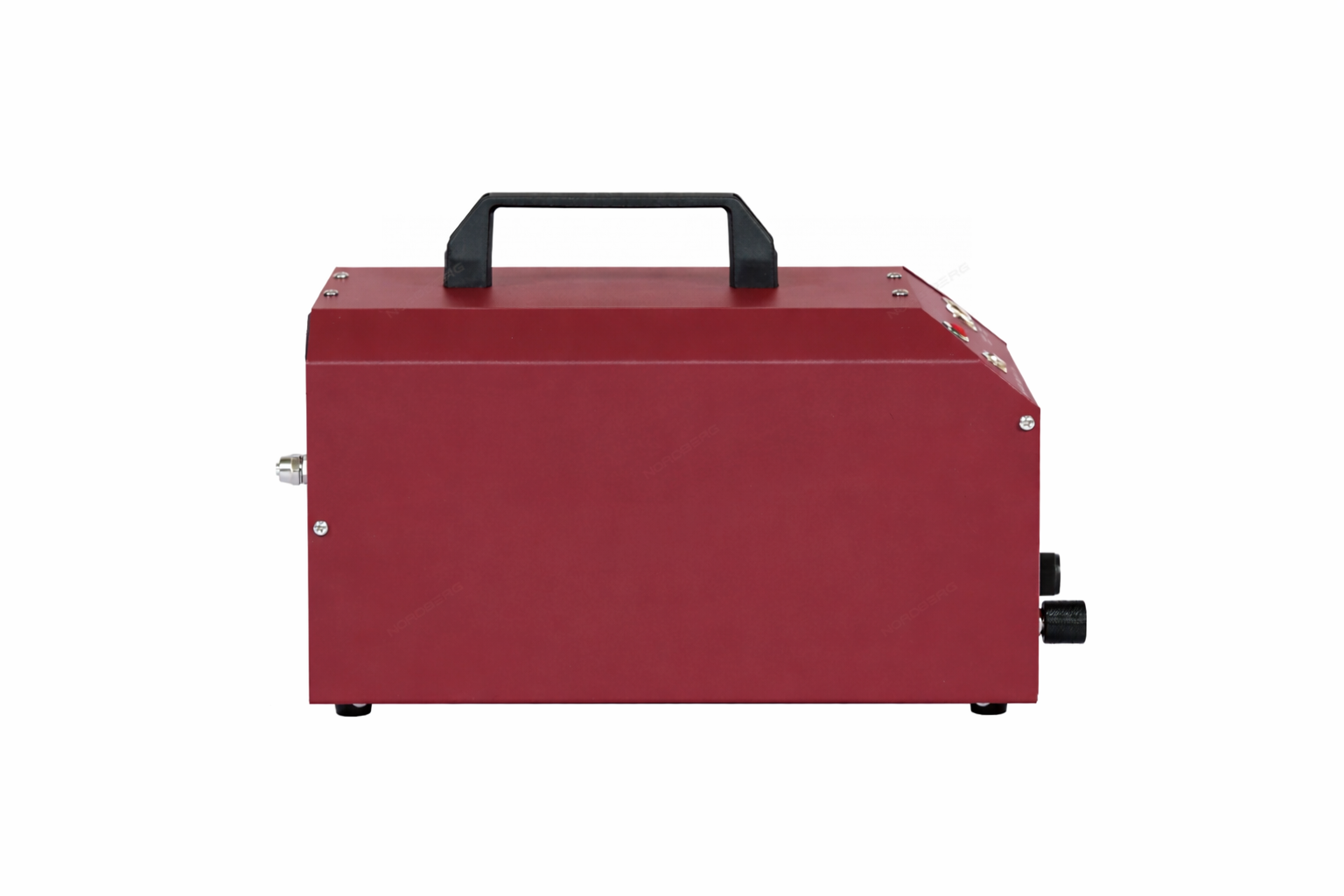

Smoke Leak Detector

Description

Function

• Detects leaks in sealed systems where air loss is not permitted (intake systems, exhaust systems, cooling systems, etc.).

• Used to check the airtightness of passenger compartments, automotive lighting components, and similar enclosed areas.

Advantages and Features

• Fast leak detection with high smoke output (ready in approximately 1.5–2 minutes).

• Efficient smoke generation — only 0.5 ml of smoke oil is needed for standard leak testing.

• Suitable for a wide range of vehicle systems requiring leak inspection.

• Compact and lightweight design for easy handling and mobility.

Ease of Use

• Simple operation with intuitive controls.

• The device heats smoke fluid into a gaseous state, after which a built-in pump compresses the white smoke and delivers it under pressure (1.6–3 bar) into a sealed system.

• Movement of the pressure gauge indicates whether air leakage is present.

Package Contents

• Smoke leak detector – 1 pc.

• Rubber plugs – 6 pcs.

• Conical plug – 1 pc.

• Rubber hose (3.8 m) – 1 pc.

• Plastic plugs – 7 pcs.

• Adapter with hand pump – 1 pc.

• Adapter – 1 pc.

• Nozzle remover – 1 pc.

• 12V DC power cable (4.5 m) – 1 pc.

• 220V power adapter (4.5 m) – 1 pc.

• Oil reservoir – 1 pc.

• Instruction manual

Application

This portable smoke leak detection device enables quick and accurate diagnostics for systems requiring maximum airtightness. It is suitable for automotive service centres, repair workshops, and industrial environments.
